Plot Seismic Components

View image

How to open the plot seismic components dialog box

1. On the Map menu bar, select Print | Print Map or to open the Print Map dialog box.
2. Click the <...> button beside Edit or View Detailed Plot Settings to open the Detailed Plot Options dialog box.
3. Select the General tab.
4. In the Seismic Components section, click <Edit>.

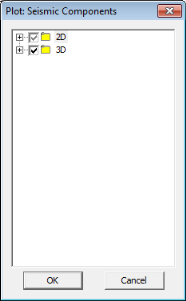

Use the Plot: Seismic Components dialog box to control which seismic vintages ProductName will draw on your map plots.

Select the check box for each group of seismic you want drawn on the plot, and clear the check box for those elements you do not want to include. If you want to select specific elements, click the <+> sign to the left of any element group to expand the list. Select or clear the check boxes accordingly.
