LogEdit

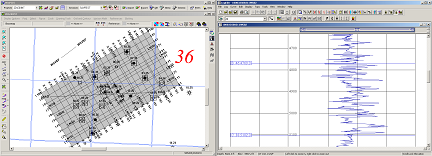

Send your LAS log curves from ProductName to LogEdit to edit the formation tops, curves, header information, and formation data. Edited logs are then returned to your ProductName project where the tops are stored into the well database, and the log is used to dynamically update your synthetic seismogram. View image

Pick tops using the high quality displays of LogEdit or edit curves and see your changes reflected in your active ProductName project immediately.

For more detailed information, refer to the LogEdit Users Guide, which can be found in ProductName on the Application toolbar under Help | Support Documents.

Sending your WinPICS Synthetics to LogEdit (Overview)

1. Click the LogEdit button on the Earth Tools toolbar.
2. Left click on a synthetic seismogram on your ProductName basemap. (To send more than one log to LogEdit, continue left-clicking on synthetics on your ProductName basemap.)
3. LogEdit will open displaying the curves from your ProductName LAS file.
4. Use LogEdit to edit your curves, formation tops, header information and formation data. (Refer to the LogEdit Help File for more information.)
5. When editing of the log file is complete, click the Launch WinPICS button in LogEdit to dynamically update your ProductName synthetic seismogram.

• Refer to the LogEdit Help File for detailed functionality information.
