Export Project Inside

Create a Map Drawing Polygon or open an existing polygon file.

1. To delete project elements, right-click to open the Map Drawing menu.
2. Select Export | Project Inside.

• If any portion of a 2D Line or 3D area falls within the boundary of the polygon, the entire element is copied from the current project to the destination project.
• If any portion of a map overlay/underlay/ for fault trace falls within the boundary of the polygon, the entire overlay will be copied from the current project to the destination project.
• Individual well-spots and synthetics that fall within the boundary of the polygon will be copied from the current well database to the destination project well database. View image

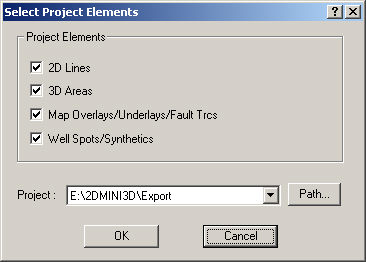

3. Select project elements to export and click <OK>. The Project Rebuild window will appear.
4. Click <OK> to rebuild the project database.
5. Click <Yes> to update the project.

To crop 2D Lines or a 3D Areas within a boundary see Export SEGY Limit by Polygon.
