Calculate Curvature on a Posted Horizon

View image

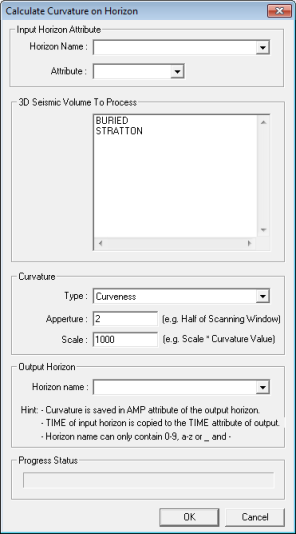

How to open this dialog box

On the Map Menu bar select Horizon | Curvature on Posted Horizon.

Calculate the curvature on a horizon

Follow these steps:

  1. Select one of your project's horizons from the drop-down list.
  2. Select an attribute (time or amplitude) to use for the calculation.
  3. Click to highlight the 3D volume or volumes to process.
  4. Select the curvature type.
  5. Type the window aperture value.
  6. Type the curvature scale.
  7. Type a name for the new Output Horizon, or select an existing horizon name from the list.
  8. If you select an existing horizon, WinPICS will overwrite the horizon's amplitude field.
  9. Click <OK>. The progress status bar displays the status of the calculation.
