X/Y Weighting

You can use the X/Y Weighting options in the DGI Gridding Options dialog box to give unequal weights for the X and Y directions when you re-evaluate a grid point. Here is an example of how different weighting options will produce different gridding computation results on your map:

Input Data (2D Lines)

View image

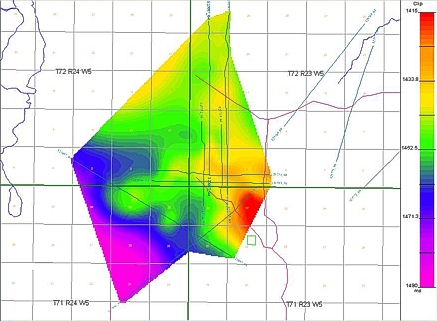

Grid with N-S Orientation

No rotation: X=1, Y=1. View image

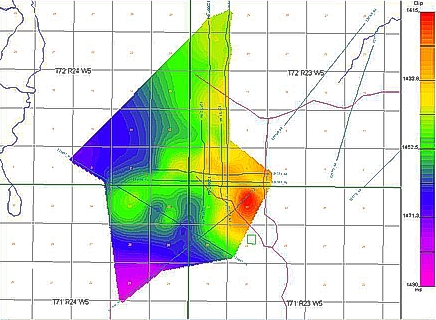

Grid with NE-SW Orientation

45 degree rotation: X=1, Y=1. View image

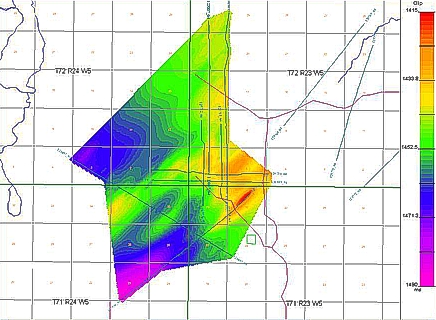

Grid with NE-SW Orientation and Bias

45 degree rotation X=0.1, Y=1. View image
