View or Hide Items

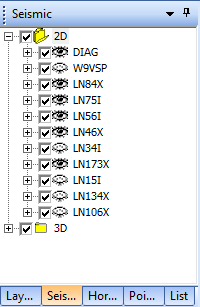

To view a layer, line, horizon, or point on the Map window, you need to make sure you have the item's check box selected in the Layer Manager bar. View image

Displayed or hidden items

The icon beside an item indicates that the item is currently displayed on the map. The icon means the item is hidden.

Display items

You have the following options for displaying items:

Hide All Items - To quickly hide all of the items in a folder, clear the folder's check box. This automatically clears the check box for each item in that folder, which hides those items in the Map view.
Display Items - To display items in the Map view, open the folder and double-click for each item you want to see. The eye icon for items you click changes to , indicating that the items now display on the map.
By clearing the check box beside the 2D or 3D folder, you can hide all the 2D or 3D seismic in your project.
