Slice Navigation from Seismic Window

Time and horizon slices are posted from amplitude slice files. Time slices are posted relative to a start time, while horizon slices are posted relative to a picked horizon.

Once a slice is posted on the map, the Seismic Slider Bar will appear on the seismic window. View image

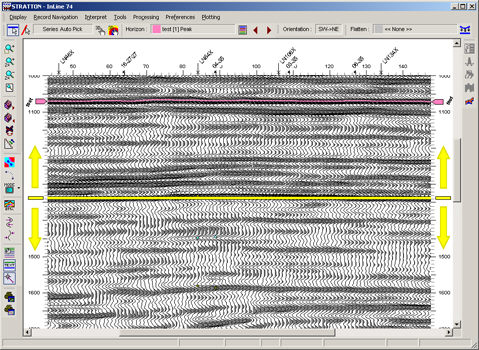

The seismic slider bar is used to navigate the slice up and down the seismic window. View image

To adjust the position of the slider bar:

Left click and hold the mouse cursor on either the left or right anchor markers.
Drag the slider bar to a new location on the seismic window and release the left mouse button.
The map window will update to display the slice at the new location.

To auto hide the slider bar on the seismic display, left click once on either the left or right anchor marker. To make there slider bar reappear, left click on the anchor marker once again.
The slice slider bar will disappear from the seismic window once the slice posting is cleared from the map.
