You are here: Working with the Application Toolbar > Open or Create a WinPICS Project

Open or Create a ProductName Project

When you start a ProductName session, you can open an existing project, or create a new one.

CollapsedOpen an existing project

  1. Double-click the ProductName icon on your desktop to start ProductName.
  2. On the Application toolbar, click to open the Browse for Folder dialog box.
  3. Browse to the directory name for the project you want to open and click <OK> to open the project. ProductName adds the project name to the Application toolbar's Projects list and opens the Map window to display your project data.

CollapsedCreate a new project

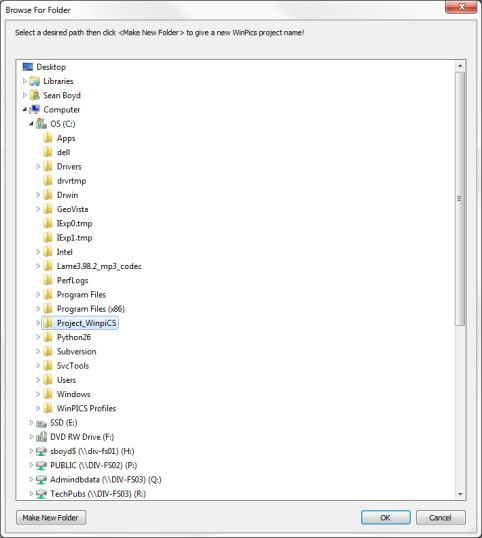

  1. On the Application toolbar, click to open the Browse For Folder dialog box.

  1. Browse and select the folder where you want to store the new project. You can click <Make New Folder> if you want to create a new folder.

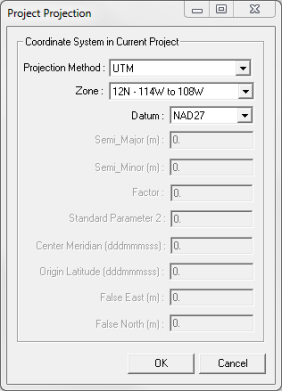

  2. Click <OK> to open the Project Projection dialog box.

  1. Select the projection method and parameters for your project.

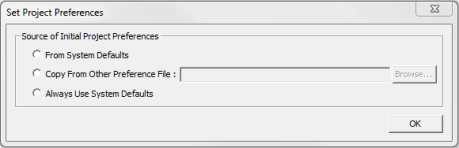

  2. Click <OK> to open the Set Project Preferences dialog box.

  1. You can choose from the following options:
  1. Click <OK> to create the new project.

CollapsedCreate a project in a new folder from Windows Explorer

  1. Create a directory using Windows Explorer.
  1. If you are already running ProductName, select the Browse for Project icon from the Application toolbar. If you are not already running ProductName, double click the ProductName icon to start your ProductName session.
  2. Select your project directory from the Browse For Folder dialog box that opens. Click <OK>. An empty ProductName project window will open.
  3. Import data into the folder to build the project.

CollapsedSave as a new project

  1. Open a project.
  2. On the Application toolbar, select Project | Save as New Project and Open.
  3. In the Browse For Folder dialog box, select the folder to create the project in.
  4. Click <OK>. ProductName creates and opens a copy of the project you were working in.

What do you want to do?
