Learn the Divestco Import Main Window

The Divestco Import dialog box's main project window displays your project information in a tree layout, with icons to help identify the project's components. View Image

The following table explains the different icons or formats you can see in this window:

Icon	Description
	Seismic Parent Object
	2D Line
	3D Area
	Can Not find Seismic / Area When this icon appears next to a seismic line/area, it means thatWinPICS was able to find reference to the line/area but it could not find the seismic data file in the root of the project directory. To include this line/area, open an explorer window and drag and drop the *.sgy file on top of the icon.
	Active Seismic Line / Area
	Inactive Seismic Line / Area
	Horizon Parent Object
	Peak
	Trough
	Zero Crossing +/-
	Zero Crossing -/+
	Fault Parent Object
	Compress/Expand View. Click to expand the view in main window (In other words, to display additional items that exist below this item in the tree view). The plus sign will turn into a minus sign. To collapse the view, click the minus sign.
Red Text	Modified Name. An event or seismic line/area name highlighted in Red, signifies that WinPICS has modified the name to meet WinPICS specifications.

To view the ASCII header for a line / area, click to view the seismic versions. Highlight the version, and WinPICS will display the ASCII header in the bottom right hand window.

Working With Objects in a Tree View

When objects appear in a tree view, they exist in a hierarchy, where an object (known as a child) that belongs to another object (known as a parent) appears below that parent object in the tree. View image

When you select a parent object's check box, WinPICS automatically selects the check boxes of all the child objects within that group.

Selecting an event from the Horizons parent object will automatically select that event on every line/area. You can turn off this event on a line-by-line basis.

What do you want to do?

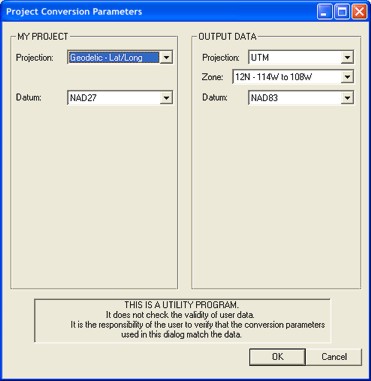

Apply project conversion parameters
