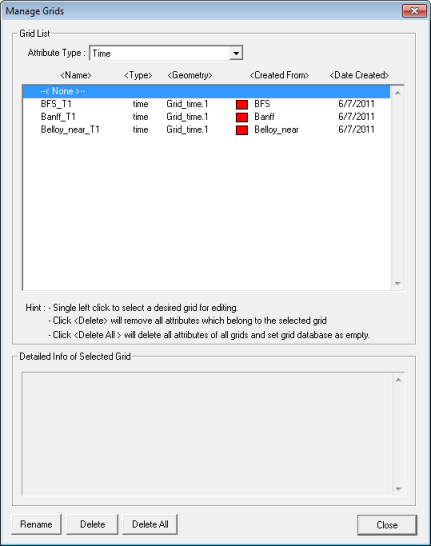

Manage Grids Dialog Box

View image

How to open this dialog box

On the Map menu bar select Grid | Manage Grids to open the Manage Grids dialog box

About this dialog box

You have the following options for managing grids:

• Rename - Highlight a grid in the list and click <Rename>. Enter a new name, making sure to follow the rules for naming grids.
• Delete - Highlight a gridded horizon and click <Delete>.
• Delete All - Click to remove all grids from the database.
• This includes grids of all data types, not just the grids that you can see in the current listing. Time, Amplitude, Velocity and Depth Grids will all be deleted.
• You can not delete a grid when it is posted on the map. Right-click on the map and select Clear Posting from the shortcut menu (or press <e> on your keyboard) to clear the current posting. You will now be able to delete the grid.
