Choose Version

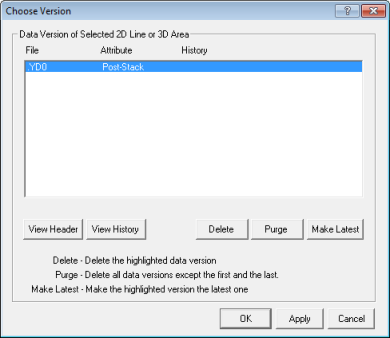

WinPICS allows you to import
multiple versions of 2D lines and 3D datasets. Use the Choose
Version dialog box to choose which version of your seismic data
to display and to work with the version.
View image
This dialog box has the following options:

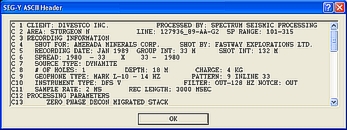

Click to display the header for your seismic data. View image

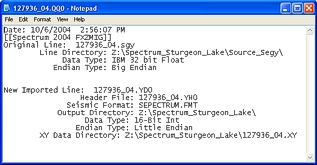

Click to view the history for your seismic data. View image
Click to delete the highlighted seismic data. A message box appears,
asking you to confirm the deletion. Click <Yes>
to confirm.
Click to purge processing versions of your seismic data. A message box
appears, asking you to confirm the purge. Click <Yes>
to confirm. All versions of your seismic data, except the first and the
last, will be deleted.
Click when you have multiple versions to make the highlighted version
the latest one.
- <OK>
- Click to return to Seismic tab of the Layer
Manager bar.
- <Apply>
- Click to apply version changes.
What do you want to do?
