Create 3D Standard Slice Files

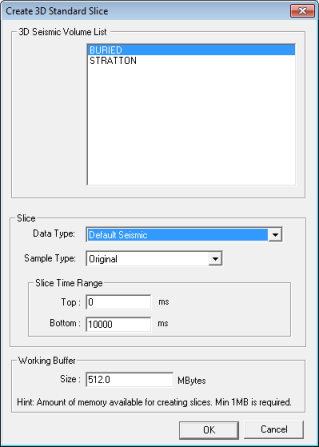

View image

How to open this dialog box

From the Map menu bar select Slice | Create Standard Slices...

create standard slices

WinPICS creates an instantaneous slice file of your 3D database on the time range you specify.

  1. In the 3D Seismic Volume List, select the 3D seismic you wish to include.
  2. In the Data Type field, select the attribute you want to create slices for . The default data type is your current version, which is the 3D seismic file with the largest extension number. You may select a different version of your 3D file or an instantaneous attribute file.
  3. Set the Sample Type as Original, 16-bit Int, or 8-bit Int for the output slice file. If the hard disk space is at a minimum, select 8-bit Int.
  4. Specify a top and a bottom time range in milliseconds in the Slice Time Range area. You can slice the entire volume or select smaller subsets to save time and disk space.
  5. Type a value for the working buffer.
  6. Click <OK>to begin calculation or click <Cancel>to exit window.
