Core Header

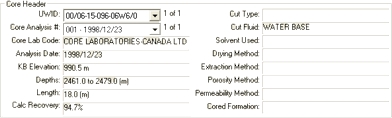

The Core Analysis tab's header information contains the following information for each core:

• You can only view one core's header information at a time.

Core Identification

The following information helps you to identify the core.

• UWIDUnique Well ID - Select the well with the core information you want to see.
• Core Analysis - Select which core analysis report you want to see. Look to the right of this list to see the total number of cores for the selected well.
• Core Lab Code - The name of the laboratory that performed the well analysis.

Core Details

The following information gives you details about the core.

• KBKelly Bushing, reference point on a drill to calculate depth. Elevation - The height from the ground to the drill's kelly bushing.
• Depths - The depth at which the core was extracted.
• Length - The length of the core.
• Calc Recovery - The percentage of the core that remained intact from the recovery.
• Cored Formation - The name of any formations included in the core sample.

Analysis Details

The following information gives you details about the core's analysis.

• Analysis Date - The date of the analysis.
• Cut Type - How the core sample was cut.
• Cut Fluid - What fluid what used to cut the core sample (For example, Water Based).
• Solvent Used - The solvent used in the analysis process (For example, Toluene).
• Drying Method - How the core sample was dried (For example, Gravity Oven).
• Extraction Method - The method used to extract the core sample (For example, Vapour Phase Extractor).
• Porosity Method - How the lab determined the core's porosity.
• Permeability Method - How the lab determined the core's permeability.
