Core Analysis Tab

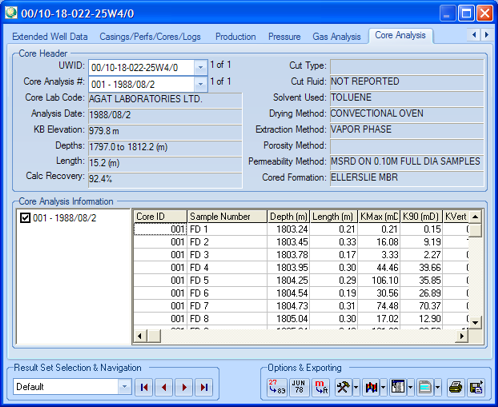

The well ticket's Core Analysis tab displays information about the core's ID and details, as well as any analysis information submitted for the core. If your selected well does not have core information, this tab appears empty.

The Core Analysis tab has two main areas of information:

• Core Header

• Core Analysis Information
• To view the core analysis information in a graph, select Graph Core Data from the <Save/View> shortcut menu on the Options and Exporting toolbar.
