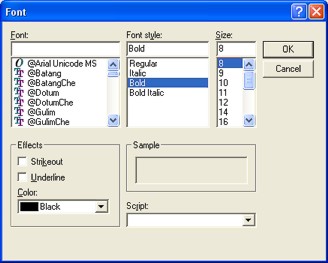

View imageClick <Font> in the Seismic Plot Display
Options dialog box or the Map Plot Display Options dialog box to open the Font dialog box, where you can adjust the font style, size, and color for labels
on the Seismic
window or Map
window. View image
ProductName displays a list of all installed Windows fonts. Select the font before you select the font style, font size, and color. Selecting no font will cause unpredictable results. Font sizes are not based on ‘points’ but are relative to screen display sizes. The font sample display in the font dialog shows style and relative size only.
You can experiment with fonts and font sizes on the screen before you plot. Select a zoom function to approximate the plot scale you will be using. Select Preferences | Font from the top of the main ProductName window and select a font. View the results on the screen. When you use Scaled Window Plot, the font sizes from your screen are used for plotting defaults. You can save your favorite combinations by clicking <Save to Template>. The next time you plot at the same scale you can make a Scaled Template Plot and get exactly the results you want.
