On the Seismic menu bar, select Plotting | Print Scaled Window Plot or Plotting | Print Scaled Template Plot to open the Print to Windows Device dialog box.
In the Display Options section, click <Edit> to open the Seismic Plot Display Options dialog box.

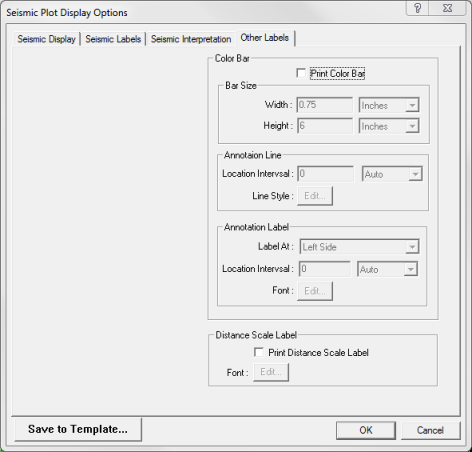

Click on the Other Labels tab.
Use the Other Labels tab to control the color palette, scale label, and label box.
ProductName organizes plot information to automatically create plot labels. Select the information to include and add custom text to your plot label. Read more.
Use this section to modify the appearance of a color palette on your plot.
Print Color Bar - Select this check box if you want to include a color palette on your plot.
Bar Size
Width – Enter the width of the color palette in inches or centimeters.
Height – Enter the height of the color palette in inches or centimeters.
Annotation Line
Location Interval - From the list, select the unit type for line location interval, and set the value. You have the following options:
Option
Description
Auto
Set ProductName to automatically select the label spacing
Units
Set the number of data units between labels.
Colors
Set the number of colors between labels.
Line Style - Edit the annotation line style.
Annotation Label
Label At – Select to label the color on the left-hand side, right-hand side, or both sides, or to omit labels altogether.
Location Interval - From the list, choose the same units for label location interval as you chose for line location interval, and set the value for label location interval to a multiple of the value you set for line location interval.
Select the Plot a Distance Scale Label check box to plot across the bottom of the seismic section in UTM coordinates. You can also click <Edit> to adjust the label's font properties.
