Seismic Plot Display Options

View image

How to open the seismic plot display options dialog box

1. On the Seismic menu bar, select Print | Print Seismic to open the Print Seismic dialog box.
2. In the Source of Plot Setting section, click <...> next to View or Edit Detailed Plot Settings to open the Seismic Plot Display Options dialog box.

The Seismic Plot Display Options dialog box enables you to make changes to how your seismic plot displays.

• By default, this dialog box displays the current Seismic window settings. However, if you are printing a scaled template plot, the settings are supplied by the template you select.

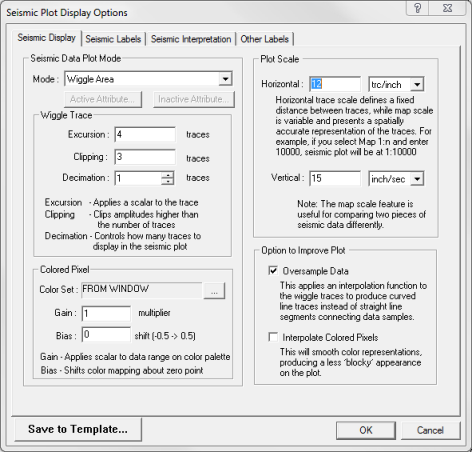

Use the Seismic Plot Display Options dialog box's tabbed windows to configure your print output:

• Seismic Display

• Seismic Labels

• Seismic Interpretation

• Other Labels

On all the tabbed windows, you also have access to the following button:

• <Save to Template> - Click this button to save your display settings to a template.

• Some settings are saved to your templates, while others are inherited from the current seismic display. Generally, settings in the Seismic Plot Display Options dialog box are saved to the template, while settings that you see in the Print Seismic dialog box are not saved to template.
• This dialog box has different options if you opened it from within the Map window.
