Generate a Checkshot

Select this option to use TVD values, seismic reference datum, and seismic times to calculate a new checkshot file for any wells that currently do not have checkshots. This way, you can automatically place well positions on your seismic.

  1. On the Main menu, select Project | Well Database to open the Well Spot Database.
  2. In the Well Spot Database, select the well(s) you want to add a checkshot to.
  3. Click <Checkshot> to open a list of options, and select Generate.

The Well Spot Database row for the well now shows a check mark in the Checkshot column. When you edit the well spot, WinPICS displays a new checkshot name for the well.

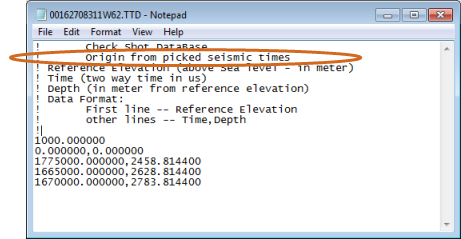

The checkshot file in your project folder will include a note in the header that the file originates from picked seismic times. View image
