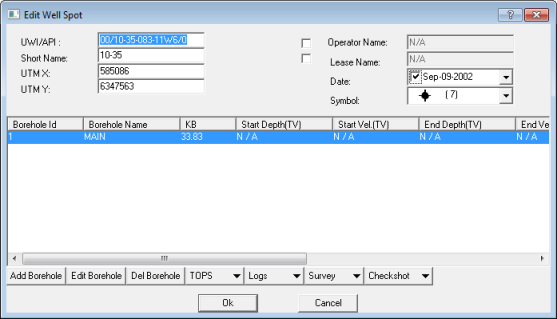

Edit Well Spot

This dialog box has the following options:

You can resize this dialog box in order to see more of your data. Click on a corner of the dialog box and drag to resize it.

UWI/API - The name of the well.
Short Name - An abbreviated name for the well.
UTM X - The x coordinates for the well.
UTM Y - The y coordinates for the well.
Operator Name - The name of the operator associated with this well.
Lease Name - The name of the lessee associated with this well.
Date - The well creation date.
Symbol - The symbol assigned to this well spot.
Boreholes Window - Lists any boreholes associated with the well.
<Add Borehole> - Click to open the Edit Borehole For dialog box, where you can create a new borehole for the current well-spot. At minimum, you must manually enter the short name and UTMUniversal Transverse Mercator X/Ys. Optionally, you can also add other parameters such as long name, operator name, lease name, date, symbol, and borehole details.
<Add Borehole> is different from import well-spot in that you have to manually enter all parameters instead of having WinPICS read them from the ‘.dat’ file.
<Edit Borehole> - Left-click on a borehole in the Boreholes window, and then click this button to open the Edit Borehole For dialog box. From here, you can edit well parameters such as name and location.
<Del Borehole> - In the Boreholes window, left-click on the borehole you want to delete, and click this button to remove that borehole from the well in your database.
<TOPS> - edit well TOPS
<Logs> - Logs
<Survey> - Surveys
<Checkshot> - Checkshots

You can keep this dialog box open while you work in the Well Spot Database dialog box, the Map window, or the Seismic window.

If you try to add a well when the Edit Well Spot dialog box is already open, WinPICS displays a warning. You must close the Edit Well Spot dialog box before you can add a new well to edit.
