Edit Well Surveys

From the Well-spot Database dialog box you can edit and delete well surveys for individual well-spots.

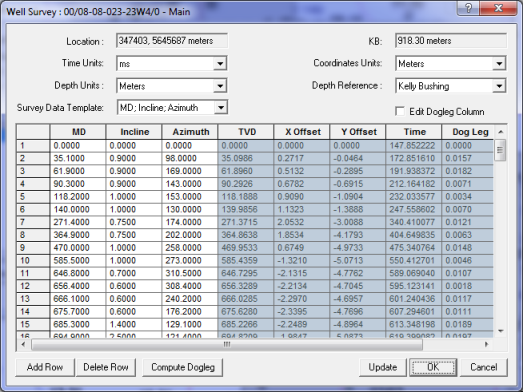

To locate the Well Survey window below, select |Well Database from the Application toolbar. A check mark in the Survey column of the Well-spot Database signifies that a survey has been assigned to that well.
To open the Edit Well-spot window you can either double-click on the selected well, or highlight a well and select the <Edit> button.
In the Edit Well-spot window select Survey | Edit.

Once you have make your edits, you will need to use Survey Functions to recompute Well Time and Survey X, Y, Z.
WinPICS cannot compute time without a checkshot or LAS.

Also see: Hand Enter Well Survey for information on entering a well survey from scratch. View image

What do you want to do?
