Define ASCII Format Dialog Box

The Define ASCII Format dialog box displays data according to your current WinPICS workflow. For example, this dialog box displays well top information if you are importing well top information from a survey file, but it displays coordinate information if you are importing shotpoint and X/Y coordinate information from a survey file.

Use this dialog box to define a format so that WinPICS can properly read the well tops data, the shotpoints and X/Y coordinates, or the well-spot data from your input file (depending on the type of information you are importing into your project).

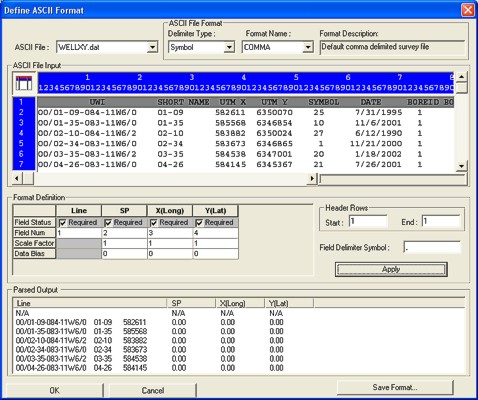

View image

This section enables you to set the format of your ASCII file:

Delimiter Type - Set your file as either fixed Column format (columns separate fields in the ASCII file) or as Symbol delimited (symbols separate the fields in your file). You can then customize the file in the ASCII File Input section and the Format Definition section.
When you set the delimiter as Symbol, the Field Delimiter Symbol field appears in the Format Definition section. Type into that field the symbol you want to use to separate fields in your file (For example, a comma), or enter a space to separate the fields by white-space.
Format Name - Select from this list one of the WinPICS pre-defined formats applicable to the delimiter type you chose. One of these predefined formats may parse your file correctly. If you are not sure, try each of these formats and view the results in the Parsed Output section. If none of the pre-defined formats work, you can edit the fields on this dialog box until you achieve the desired results (For example, set your header rows, scale factor, or data bias).

This section displays the raw contents of your file in a table format.

If you selected the Column delimiter type in the ASCII File Format section, WinPICS automatically attempts to determine which lines in your file contain header information by shading those lines in the table. You need to look at the lines in the file and enter the actual header row numbers in the Header Row section.

Once you determine your header rows, you can select to view your data without the shading. Click (in the upper left-hand corner of the ASCII File Input section) to turn off the shading. This is helpful when you want to find column numbers and manually enter them into the Format Definition section. Use the numbers along the top of the ASCII File Input section as a guide to determine the column numbers.

You can turn off the shading, but WinPICS will still consider those lines listed in the Header Row section as the header lines in your file. The shading is only a tool to help highlight header information in the table. If you do not want any header information, type 0 in the Header Row fields.

This section enables you to describe the format of the raw file.

Field Status - Select the Required check box for each data type you want to include in your file.
Start Column and End Column - These rows only appear when you select Column as the Delimiter Type. Type in Start Column and End Column values and click <Apply> to update the format displayed in the Parsed Output section. Alternatively, in the ASCII File Input section you can drag and drop column bars to new positions.
Field Num - This row only appears when you select Symbol as the Delimiter Type. Symbol. Type the field number for each required data element and click <Apply>.
Scale Factor - Type in a scale factor for the X/Y coordinates and shotpoints (if applicable). WinPICS divides parameter values by this number. For example, if you use a scale factor of 100, WinPICS will change 56756755 to 567567.55.
Data Bias - Type in a bias for the X/Y coordinates and shotpoints (if applicable). WinPICS adds this value to the parameter values. For example, if you use a bias of 1000, WinPICS will change 567000 to 568000.
Header Rows - Set which of your file's rows to use a header rows. In the Start field, type which row to use as the first row in your header. In the End field, type which row to use as the last row in your header. WinPICS will include in the header all the rows between your start and end row. Click <Apply> to set your changes; WinPICS will display the header lines as N/A entries in the Parsed Output section.
If the first row in the file is the only row that displays header information, type 1 in Start and type 1 in End. Or, if none of your rows contain header information, type 0 in both fields.
Field Delimiter Symbol - This field only appears when you select Symbol as the Delimiter Type. Type into the field the symbol you want to use to separate the fields in your file (For example, a comma). If you set the delimiter's Format Name as White-Space, type a space in the Field Delimiter Symbol field (you don’t need to enter a precise number of spaces. The wizard will get the idea and simply skip all white-space.)
<Apply> - Click to update the format and the Parsed Output section.
