Resurvey From Ascii

You can resurvey a line in your project without re-loading by importing a survey file in ascii format and applying it to the line. Follow these steps:

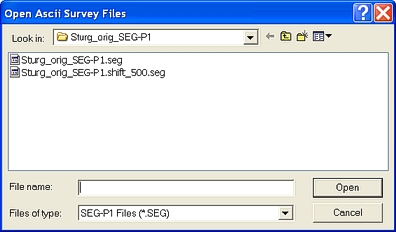

1. On the Application toolbar, select | Resurvey | 2D Lines to open the Open Ascii Survey Files dialog box. View image

2. In the Look in field, browse to the location of the ascii file you want to import.
3. Select the file. It should have a .seg or .sp1 suffix.
4. Click <Open> to open the Define ASCII Format dialog box, where you can define a format so WinPICS can properly read the well tops data, the shotpoints and X/Y coordinates, or the well-spot data from your ascii file.
5. Click <OK> on the Define ASCII Format dialog box to open the Confirmation dialog box. View image

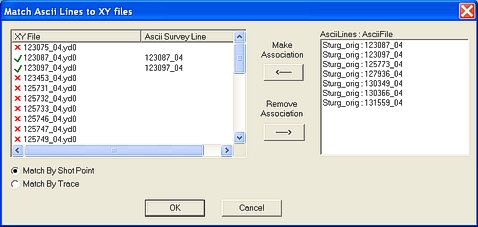

6. Click <Yes> if you want to perform a coordinate conversion in the Project Conversion Parameters dialog box. Click <No> to open the Match Ascii Lines to XY Files dialog box, where you can associate lines in the Ascii file with the lines in your project. View image

WinPICS will try to automatically match up lines in the Ascii file with the corresponding line in your project. The XY File/ Ascii Survey Line field displays the XY files for the lines in your project, alongside any Ascii survey lines that WinPICS associates with them.

You can also associate Ascii files with your project files manually. Follow these steps:

1. Select a line in the Ascii Lines : AsciiFile field. WinPICS highlights the line.
2. In the XY File field, select a file from your project. WinPICS highlights the line.
3. Click the Make Association arrow button to associate the two highlighted lines. WinPICS displays the Ascii file line under the Ascii Survey Line field alongside the XY file line and marks the associated XY file with a check mark.

You can remove an association so WinPICS will not import the selected Ascii lines. Follow these steps:

1. In the XY File field, select an associated file. An associated file has a check mark beside it.
2. Click the Remove Association arrow button to remove the association between the selected XY file and the Ascii line.

This dialog box also has the following options:

• Match By Shot Point/ Match By Trace - Select one of these options to match the Ascii files and project XY files by shot points or by trace.
• <OK> - Click to complete the import. When complete, WinPICS will import the data into your project and return you to the Map view.
