Application Toolbar

The Application toolbar is WinPICS' main interface. From here, you have the option to do many things, such as open projects, maps, or seismic windows, set preferences, and close the software. You can also drag this toolbar to a new location or resize the toolbar to cover more than one monitor.

You can open multiple projects, maps, or seismic sections at the same time. However, you must have at least one Map window open in order to select and display seismic in a Seismic window.

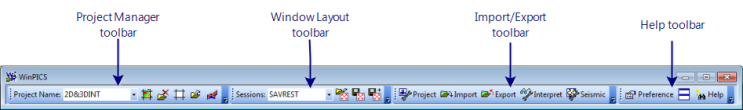

The Application toolbar is a compilation of several toolbars that stay open while you work in the Map window or Seismic window. When you open WinPICS , this toolbar is the only part of the interface that is active. You can drag toolbars out of the main Application toolbar and float them in any location on your screen while you work.

Project Manager Toolbar

Button	Description
	Lists the names of projects you previously opened in WinPICS .
	Opens the map for your selected project.
	Closes your selected project.
	Creates a new project.
	Opens the Browse for Folder dialog box, where you can locate the folder that contains the project you want to open.
	Launches Divestco's WinPICS 3D software to open your selected project.
	Tiles your open windows across the desktop.

Window Layout Toolbar

Button	Description
	Lists all your available window sessions.
	Opens your selected session.
	Saves changes to your selected session.
	Saves changes as a new session.

Import/Export Toolbar

Button	Description
	Opens a list of project tools: New Project Open Project Open Selected in New Map Window Open Selected in Windows Explorer Save as New Project and Open Save as New Project with a New Projection Close Selected Project Close All Projects Open Selected Session Save to Selected Session Save as New Session Merge Other Project Into Selected Backup Selected Project Rebuild Selected Project Check Selected Project Integrity Launch WinPICS 3D With Selected Project Convert Project Projection Create Project Summary Report Create Horizon Coverage Report Well Database Exit WinPICS
	Opens a list of import options: Import Seismic (SEGY) Import Horizons (HAS) Import Velocity Model Files (AVF) Import Seismic Versions Import Map Overlays Import Points Import Seis-X / SeisWare Projects Import Divestco SEGY Import GeoReferenced Images Resurvey Import Survey
	Opens a list of export options: Export Seismic Data (SEGY) Export Interpretation Export Map Overlays
	Opens a list of interpretation options: PIC Script Quick Script New Comparison Polygon View Horizon or Grid in 3D Time to Depth Conversion Grid Calculator Horizon Calculator
	Opens a list of seismic options: Change Max Value Display Max Value Stats Compute Instantaneous Attributes Seismic Processing Functions Correlation Polygon Spectral Decomposition Process Consistency Volume

Help Toolbar

Button	Description
	Opens a list of preferences you can set: Installation Defaults Project Preferences Copy Preferences Customize Toolbar Layout Reset Layouts Set User Logo
	Opens a list of help options: WinPICS Help (You're looking at it) Technical Reference Interface Guide Quick Start Guide Release Notes Licensing Frequently Asked Questions Live Support About

Button

Description

Opens a list of preferences you can set:

Installation Defaults
Project Preferences
Copy Preferences
Customize Toolbar Layout
Reset Layouts
Set User Logo

Opens a list of help options:

WinPICS Help (You're looking at it)
Technical Reference
Interface Guide
Quick Start Guide
Release Notes
Licensing
Frequently Asked Questions
Live Support
About

All Toolbars

Button	Description
	Opens a list of toolbar options to configure your toolbars.
