Gridding

The Gridding dialog box enables you to set the grid area, grid density, gridding method, and trend treatment for your horizon grid. You can open this dialog box from within the Choose Horizon For Gridding dialog box.

  1. Open the Gridding dialog box from the Map menu bar by selecting Grid and Contour | Create Horizon Grids (or press <Ctrl> + <g> on your keyboard).

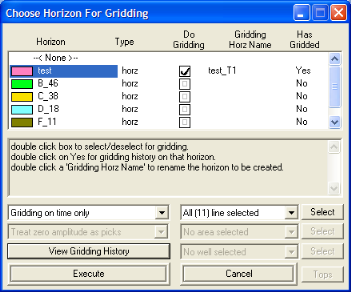

  2. Double-click the check box in the Do Gridding column for the horizon you wish to grid. View image

  1. Click <Execute>. The Gridding dialog box will open.

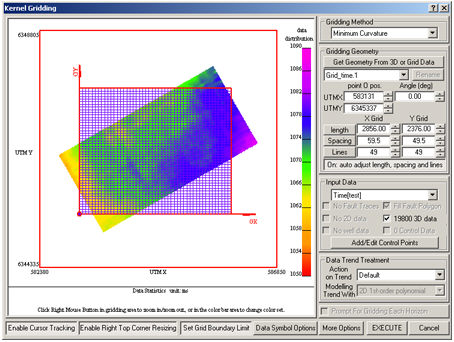

Click on the areas of the following image to learn more about the Gridding dialog box. View image

What do you want to do?
