Create a New Grid From Well Tops

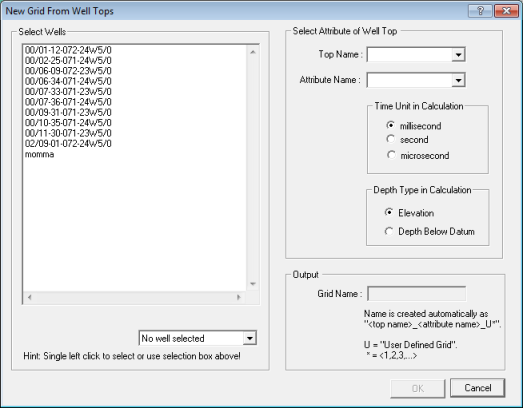

Use New Grid From Well Tops to generate a grid from selected well tops. View image

You can generate the list of wells to grid either by selecting them from a list, or by capturing the wells on the map by drawing a polygon around them.

Wells from list

Follow these steps:

  1. On the Map Menu bar, select Grid | New Grid From Well Tops Only - List to open the New Grid From Well Tops dialog box.
  2. Select wells from the list. WinPICS will use only tops from these wells to generate the grid. You can use the drop-down list below the window to extend the list, or select all or none of the wells.
  3. Select the tops and attribute to grid on.
  4. If necessary, change the time unit and depth type.
  5. Click <OK>. The Gridding dialog box opens. Here, you can set the grid area, grid density, gridding method, and trend treatment for your horizon grid, and then execute the grid.

Wells from map

Follow theses steps:

  1. On the Map Menu bar, select Grid | New Grid From Well Tops Only - Polygon to turn your cursor into a pencil.
  2. Move the cursor over your map and click to draw a polygon around the wells you want to grid. Make sure the shape you draw fully encloses the area with the wells.
  3. Right-click inside the polygon to open the New Grid From Well Tops dialog box. The wells in the map polygon display in the Select Wells list.
  4. Select the tops and attribute to grid on.
  5. If necessary, change the time unit and depth type.
  6. Click <OK>. The Gridding dialog box opens. Here, you can set the grid area, grid density, gridding method, and trend treatment for your horizon grid, and then execute the grid.
