Content Control

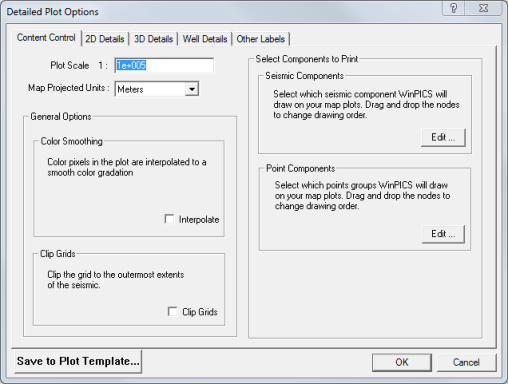

View image

How to open the content control tab

1. On the Map menu bar, select Print | Print Map or to open the Print Map dialog box.
2. Click the <...> button beside Edit or View Detailed Plot Settings to open the Detailed Plot Options dialog box.
3. Click on the Content Control tab.

Set Display options for your map plot

• Plot Scale - In the Plot Scale field, type a scale value for the map, and use the Map Projected Units list to specify if the value is meters or feet. For example, one meter on a 1:25 000 map represents 25,000 m.

• Color Smoothing - Select the Interpolate check box if you want your plot's colors interpolated to a smooth color gradation and to minimize a blocky appearance.

• Clip Grids - Select the Clip Grids check box if, on your plot, you want to clip the grid to the outermost extents of the seismic.

• Map Components - Click this <Edit> button to open the Plot: Map Components dialog box, where you can configure which map components ProductName draws on your map plots.
• Seismic Components - Click this <Edit> button to open the Plot: Seismic Components dialog box, where you can configure which seismic components ProductName draws on your map plots.
• Point Components - Click this <Edit> button to open the Plot: Points Components dialog box, where you can configure which point components ProductName draws on you map plots.

What do you want to do?

• Set 2D line options for your map plot
• Set 3D areas and grids options for your map plot
• Set wells options for your map plot
• Set other label options for your map plot
