Post Grids

After you create a grid, post the gridded surface as follows:

1. From the Mapmenu select Post | Post Grid| data type (Time, Amplitude, Depth, Depth as Elevation, Interval Velocity, Average Velocity, or User Defined).

• Depth grids may be posted in Depth below seismic datum, or Elevation. See: Depth Datum Definitions.

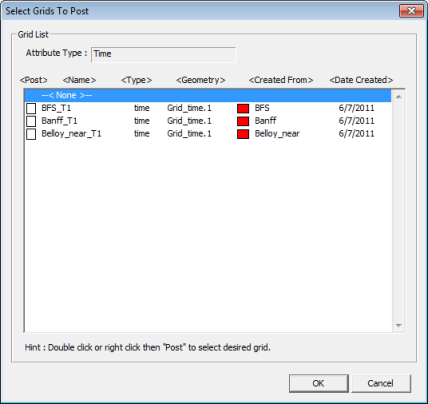

2. A window will open containing a grid list of the data type you have requested. Each grid is listed with its data type (attribute), grid parameter filename, associated horizon name, and date that the grid was created. View image

3. Double click on the check box under the Post column next to the gridded horizon you wish to post. An X will appear in the box next to the selected grid, click <OK>. Alternatively, click <Cancel> to exit window without posting a grid.
4. Multiple grids can be posted to a single basemap by double clicking on more than one check box under the Post column.

What do you want to do?

• Create horizon grids
• Manage your grids
